- Handles pipe diameters from 1/2” to 2” with precise automatic threading.
- Achieves production speeds of 30–55 seconds per pipe for high efficiency.
- Equipped with durable W18Cr4V blades for long-lasting V-thread cutting performance.

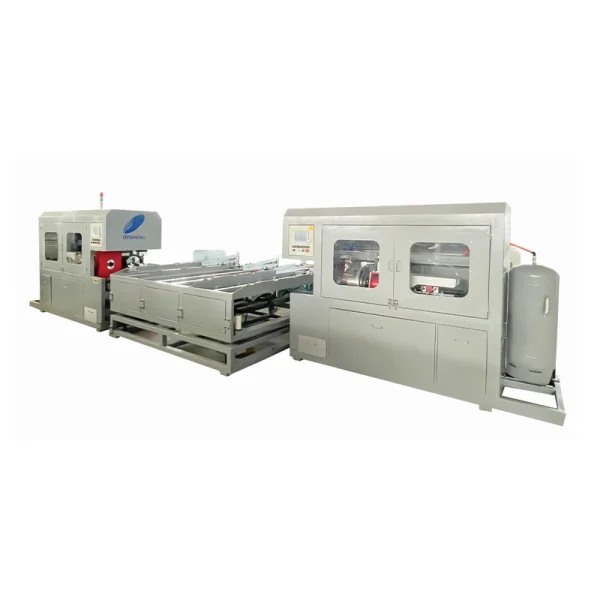

DS60-TA Automatic Thread Cutting Machine
Main Technical Specifications
| Model | DS60-TA |
| Diameter | φ1/2”-φ2” |
| Pipe Length | 3m-4m |
| Compressed air pressure | 0.6Mpa |
| Total power (KW) | 6 |
| Total weight(KG) | 3100 |
| Overall Size (L*W*H,MM) | 6850*2150*1850 |
| Production speed | 30s-55s |

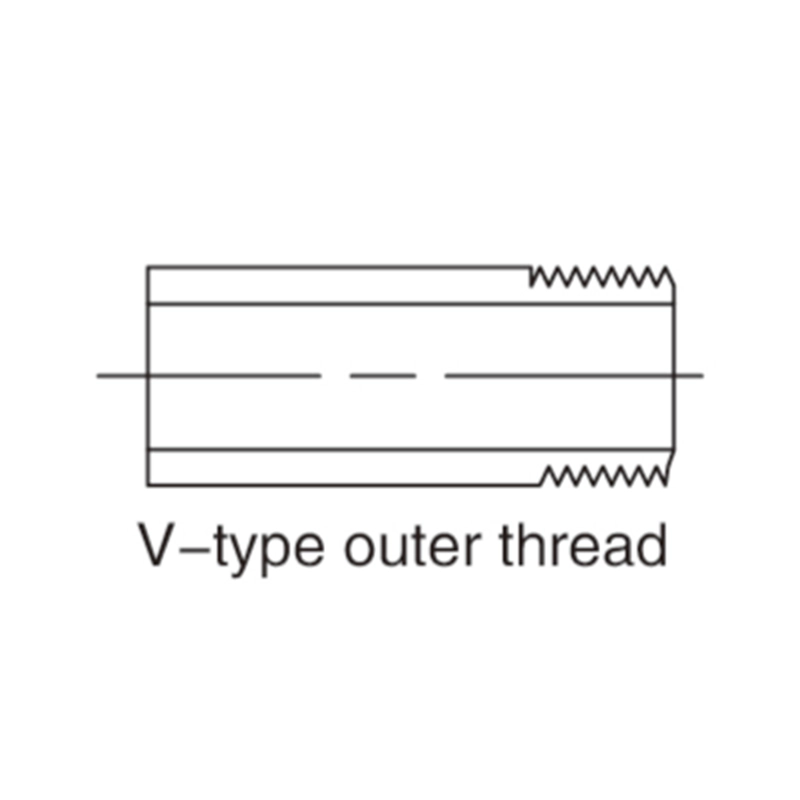

| Thread type | V-thread |
| Blade material | W18Cr4V |
